core::TCPSession2 Class Reference

#include <TCPSession2.h>

Inheritance diagram for core::TCPSession2:

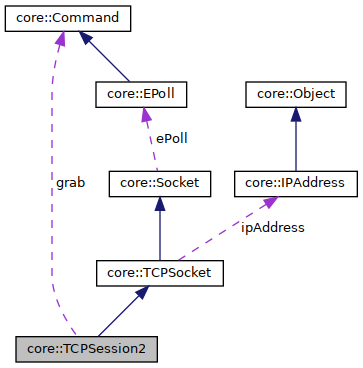

Collaboration diagram for core::TCPSession2:

Public Member Functions
	TCPSession2 (EPoll &ePoll, std::string text="")
virtual void	output (std::stringstream &data)
void	send ()
void	terminate ()
Public Member Functions inherited from core::TCPSocket
	TCPSocket (EPoll &ePoll)
	TCPSocket (EPoll &ePoll, std::string text)
void	connect (IPAddress &address)
Public Member Functions inherited from core::Socket
	Socket (EPoll &ePoll, std::string text="")
virtual	~Socket ()
void	shutdown (std::string text="unknown")
void	setDescriptor (int descriptor)
	Set the descriptor for the socket. More...
int	getDescriptor ()
	Get the descriptor for the socket.
bool	eventReceived (struct epoll_event event, long long eventId)
	Parse epoll event and call specified callbacks. More...
int	write (std::string data, Socket *sender=NULL)
void	write (char *buffer, int length)
void	output (std::stringstream &out)
virtual void	onRegister ()
	Called before the socket has registered with the epoll processing. More...
virtual void	onUnregister ()
virtual void	onUnregistered ()
	Called when the socket has finished unregistering for the epoll processing. More...
bool	needsToWrite ()

Public Attributes
Command *	grab = NULL
std::stringstream	out
Public Attributes inherited from core::TCPSocket
IPAddress	ipAddress
Public Attributes inherited from core::Socket
bool	reset = false
volatile bool	shutDown = false

Protected Member Functions
virtual void	onRegistered () override
	Called after the socket has been registered with epoll processing.
virtual void	onDataReceived (coreutils::ZString &data) override
virtual void	onLineReceived (coreutils::ZString &line)
virtual void	onBlockReceived (coreutils::ZString &block)
virtual void	onConnected ()
virtual void	protocol (coreutils::ZString &data)
void	setBlockSize (int size=0)
Protected Member Functions inherited from core::Socket
void	setBufferSize (int length)
int	getBufferSize ()
virtual void	onDataReceived (std::string data)
	Called when data is received from the socket. More...
virtual void	receiveData (coreutils::ZString &buffer)

Additional Inherited Members
Protected Attributes inherited from core::Socket
EPoll &	ePoll

Detailed Description

TCPSession2

TCPSession defines the nature of the interaction with the client and stores persistent data for a defined session. TCPSession objects are not sockets but instead provide a communications control mechanism. Protocol conversations are provided through extensions from this object.

TCPSession2 is designed to be 'connected' instead of being served by a server.

Member Function Documentation

onBlockReceived()

void core::TCPSession2::onBlockReceived ( coreutils::ZString &  block )

protectedvirtual

Override the onBlockReceived method to receive a string of characters that represents a single block of data of length determined by the block length value. If onDataReceived was overriden this method will not be called unless the onDataReceived calls this method explicitly using the class and member name.

onConnected()

void core::TCPSession2::onConnected ( )

protectedvirtual

This method is called from within the protocol method when protocol is called on the initial connection where the data is an empty string. Use this method to deliver a message to the connection upon connection.

onDataReceived()

void core::TCPSession2::onDataReceived ( coreutils::ZString &  data )

overrideprotectedvirtual

Override this method to receive data directly from the socket as data is received. If you need data split by line termination characters then override the onLineReceived method instead.

Reimplemented from core::Socket.

onLineReceived()

void core::TCPSession2::onLineReceived ( coreutils::ZString &  line )

protectedvirtual

Override the onLineReceived method to receive a string of characters that represents a single line of data terminated by a LF or CRLF. If onDataReceived was overriden this method will not be called unless the onDataReceived calls this method explicitly using the class and member name.

output()

void core::TCPSession2::output ( std::stringstream &  out )

virtual

The output method is called by a socket session (TCPSession) and will output the detail information for the client socket. When extending BMATCPSocket or BMASession you can override the method to add attributes to the list.

Reimplemented from core::TCPSocket.

protocol()

void core::TCPSession2::protocol ( coreutils::ZString &  data )

protectedvirtual

Override the protocol method to manage and control the session communications in your inherited session. If you do not override this method then the Session default will process the 'commands' added to the server object using the processRequest method on the session input.

When data is received within the session two modes are available to pass the data through the protocol method: LINE or BLOCK.

send()

void core::TCPSession2::send

(

)

The send method is used to output the contents of the out stream to the session containing the stream.

setBlockSize()

void core::TCPSession2::setBlockSize ( int  size = 0 )

protected

Use setBlockSize to set the amount of data that should be read at once from the session data buffer. If this value is set to 0 then the data will be retrieved

terminate()

void core::TCPSession2::terminate

(

)

Use this method to terminate this TCPSession.

Member Data Documentation

out

std::stringstream core::TCPSession2::out

Use out to send data to the session socket or other session sockets.

---

The documentation for this class was generated from the following files:

• TCPSession2.h
• TCPSession2.cpp
