core::TCPServer Class Reference

#include <TCPServer.h>

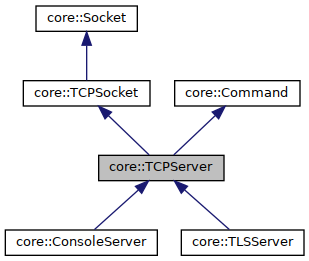

Inheritance diagram for core::TCPServer:

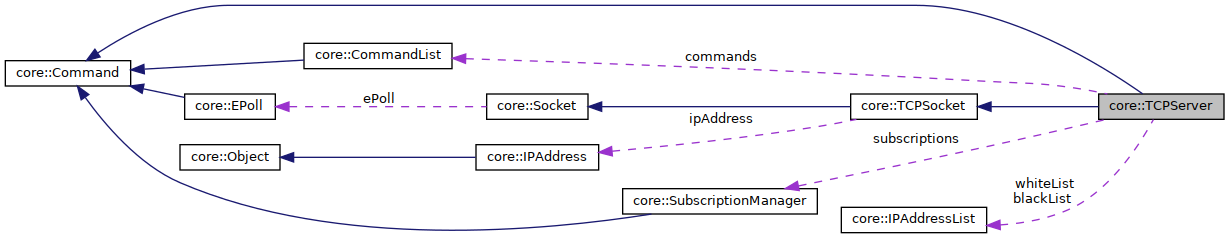

Collaboration diagram for core::TCPServer:

Public Member Functions
	TCPServer (EPoll &ePoll, IPAddress address, std::string delimiter=" ", int depth=10, std::string text="")
virtual	~TCPServer ()
virtual void	sessionErrorHandler (std::string errorString, std::stringstream &out)
virtual TCPSession *	getSocketAccept (EPoll &epoll)
void	removeFromSessionList (TCPSession *session)
void	output (std::stringstream &out)
	Output the consoles array to the console.
void	sendToAll (std::stringstream &out)
void	sendToAll (std::stringstream &out, TCPSession &sender, SessionFilter filter)
void	sendToAll (std::stringstream &out, TCPSession &sender)
Public Member Functions inherited from core::TCPSocket
	TCPSocket (EPoll &ePoll)
	TCPSocket (EPoll &ePoll, std::string text)
void	connect (IPAddress &address)
Public Member Functions inherited from core::Socket
	Socket (EPoll &ePoll, std::string text="")
virtual	~Socket ()
void	shutdown (std::string text="unknown")
void	setDescriptor (int descriptor)
	Set the descriptor for the socket. More...
int	getDescriptor ()
	Get the descriptor for the socket.
bool	eventReceived (struct epoll_event event)
	Parse epoll event and call specified callbacks. More...
int	write (std::string data)
void	write (char *buffer, int length)
void	output (std::stringstream &out)
virtual void	onRegister ()
	Called before the socket has registered with the epoll processing. More...
virtual void	onRegistered ()
	Called after the socket has been registered with epoll processing.
virtual void	onUnregister ()
virtual void	onUnregistered ()
	Called when the socket has finished unregistering for the epoll processing. More...
bool	needsToWrite ()

Public Attributes
std::vector< TCPSession * >	sessions
CommandList	commands
IPAddressList *	blackList
IPAddressList *	whiteList
SubscriptionManager	subscriptions
Public Attributes inherited from core::TCPSocket
IPAddress	ipAddress
Public Attributes inherited from core::Socket
bool	reset = false

Protected Member Functions
void	onDataReceived (std::string data) override
int	processCommand (coreutils::ZString &request, TCPSession &session) override
Protected Member Functions inherited from core::Socket
void	setBufferSize (int length)
int	getBufferSize ()
virtual void	onDataReceived (coreutils::ZString &data)
virtual void	receiveData (coreutils::ZString &buffer)

Additional Inherited Members
Protected Attributes inherited from core::Socket
EPoll &	ePoll
bool	shutDown = false

Detailed Description

TCPServer

Manage a socket connection as a TCP server type. Connections to the socket are processed through the accept functionality.

A list of connections is maintained in a vector object.

This object extends the BMACommand object as well so it can be added to a Console object and process commands to display status information.

Constructor & Destructor Documentation

TCPServer()

core::TCPServer::TCPServer	(	EPoll &	ePoll,
		IPAddress	address,
		std::string	delimiter = " ",
		int	depth = 10,
		std::string	text = ""
	)

The constructor for the TCPServer object.

Parameters

ePoll	the EPoll instance that manages the socket.
url	the IP address for the socket to receive connection requests.
port	the port number that the socket will listen on.
commandName	the name of the command used to invoke the status display for this object.

~TCPServer()

core::TCPServer::~TCPServer ( )

virtual

The destructor for this object.

Member Function Documentation

getSocketAccept()

TCPSession * core::TCPServer::getSocketAccept ( EPoll &  epoll )

virtual

getSocketAccept is designed to allow a polymorphic extension of this object to return a type of object that extends the definition of the server socket. Returning the appropriate session object that extends from Session provides the mechanism where the server can select the protocol dialog for the desired service.

Reimplemented in core::ConsoleServer.

onDataReceived()

void core::TCPServer::onDataReceived ( std::string  data )

overrideprotectedvirtual

Override the virtual dataReceived since for the server these are requests to accept the new connection socket. No data is to be read or written when this method is called. It is the response to the fact that a new connection is coming into the system

Parameters

data	the pointer to the buffer containing the received data.
length	the length of the associated data buffer.

Reimplemented from core::Socket.

processCommand()

int core::TCPServer::processCommand ( coreutils::ZString &  request, TCPSession &  session  )

overrideprotectedvirtual

This method is called when the Command associated with this object is requested because a user has typed in the associated command name on a command entry line.

Parameters

the	session object to write the output to.

Reimplemented from core::Command.

sendToAll() [1/2]

void core::TCPServer::sendToAll	(	std::stringstream &	out,
		TCPSession &	sender
	)

Use this sendToAll method to output the contents of the out stream to all the connections on the server excluding the sender session and the entries identified by the passed in filter object.

sendToAll() [2/2]

void core::TCPServer::sendToAll	(	std::stringstream &	out,
		TCPSession &	sender,
		SessionFilter	filter
	)

Use this sendToAll method to output the contents of the out stream to all the connections on the server excluding the sender session.

Member Data Documentation

blackList

IPAddressList* core::TCPServer::blackList

If not NULL the blacklist object can be assigned to this server socket and the server IP addresses connecting to the server attempting to accept a socket are contained in this list then the connection is rejected and no accept is granted.

commands

CommandList core::TCPServer::commands

The commands object is a CommandList and is used to store Command objects to be parsed and run as data comes into the session.

sessions

std::vector<TCPSession *> core::TCPServer::sessions

The list of sessions that are currently open and being maintained by this object.

subscriptions

SubscriptionManager core::TCPServer::subscriptions

The Subscription Manager tracks all subscriptions on the server.

whiteList

IPAddressList* core::TCPServer::whiteList

If not NULL the blacklist object can be assigned to this server socket and the server IP addresses connecting to the server attempting to accept a socket are contained in this list then the connection is rejected and no accept is granted.

---

The documentation for this class was generated from the following files:

• TCPServer.h
• TCPServer.cpp
